YCK2020 - Tutorial TopSolid'Design 7 Basics - Creating a Bill of Materials - Creating the Draftings from the BOM

TopSolid 7 is a revolutionary product to meet the needs of manufacturing companies, big and small.

TopSolid 7 software includes many modules. This article will cover TopSolid'Design. To better understand TopSolid'Design, let's learn some basic commands in Designing the Base Support to design a simple part. TopSolid 7 provides users with the function of managing the entire project. BOM is used to manage that entire project.

Tutorial TopSolid'Design 7 Basics - Creating a Bill of Materials - Creating the Draftings from the BOM .  You can find this article again with keywords:


  • Creating a Bill of Materials

  • Creating the Draftings from the BOM

Creating a Bill of Materials

To create a BOM, the steps are as follows:

- Right-click on the Vice assembly document from the Project tree.

Tutorial TopSolid'Design 7 Basics

- Select the Bill of Material command.

Note: TopSolid 7 always knows what you are looking for with its "intuitive" menu technology.

Tutorial TopSolid'Design 7 Basics

- Select Demo BOM from the project templates and then click on to confirm the operation.

Tutorial TopSolid'Design 7 Basics

- Click on to confirm the assembly document to reference.

Note: To look at the information automatically completed in the sample BOM above. You will notice that the BOM even includes the mass of each of the parts.

What is impressive is that TopSolid automatically calculated

the mass for you and will make updates based on your changes.

Tutorial TopSolid'Design 7 Basics - TheCNC2020

- To open a document from the BOM line, you simply have to right-click on this document in the Project tree and select the Open Document command.

- Save the BOM document by clicking on the icon.

Creating the Draftings from the BOM

You will create all of the draftings needed for the Vice assembly. The greatest part is that TopSolid creates all of the necessary documents automatically.

Creating the Draftings from the BOM, the steps are as follows:

- Go to the Bill of Material tab and select the Multiple Draftings command.

- From the Selections tab, double-click on the text next to the assembly document in the Template column to define a drafting template.

- In the Project Templates folder, select the A1-ISO-Assembly drafting template for the assembly and then click on to confirm the operation.

- Double-click on the text next to a part document in the Template column.

- In the Project Templates folder, select the A4-ISO-Part drafting template for the part and then click on to confirm the operation.

- Right-click on the name of the part template (A4-ISO-Part) in the Template column and select Apply the template to this type. The A4-ISO-Part drafting template is then applied to all parts.

Tutorial TopSolid'Design 7 Basics




Tutorial TopSolid'Design 7 Basics
Tutorial TopSolid'Design 7 Basics

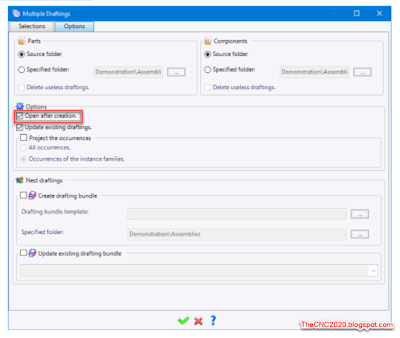

- Open the dialog box’s Options tab, make sure that the Open after creation option is checked and then click to confirm the operation.

Tutorial TopSolid'Design 7 Basics

Once confirmed, TopSolid 7 creates all of the draftings. Moreover, if you look in the Project tree, you will see that all of the new drafting documents are located directly under each of the parts or assemblies that they were built from.

 Hopefully, the article Creating a Bill of Materials will help you better understand Tutorial TopSolid'Design 7 Basics. If you have any discussion with us, please comment in the comment section at the end of the article. Good luck! Bạn có trao đổi gì về nội dung này không? Hãy để lại Comment trong phần Nhận xét cuối bài đăng nhé. Bài viết này thuộc chủ đề công bố trên Blog Yêu Cơ Khí #YCK2020 - Kênh chia sẻ kiến thức về Công nghệ Chế tạo máy.
